Model	M200AD115V
Voltage	115V 1PH 60HZ
Max Flow	195CFM
Rated Pressure	116 PSI / 0.8MPa
Max Working Pressure	145 PSI / 1.0MPa
Compressor Brand	Panasonic
Compressor Power	1.2KW
Max Inlet Temperature	≤176℉
Pressure Dew Point	35.6℉ ~ 50℉
Refrigerant	R410a
Air Inlet Thread	1-1/2"NPT
Air Outlet Thread	1-1/2"NPT
Machine Size:	19.7 x 35.8 x 34.6"
Packing Size:	25.6 x 38.6 x 44.9"
N.W.:/ G.W.:	211/306LBS

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.

196CFM Air Dryer Collection

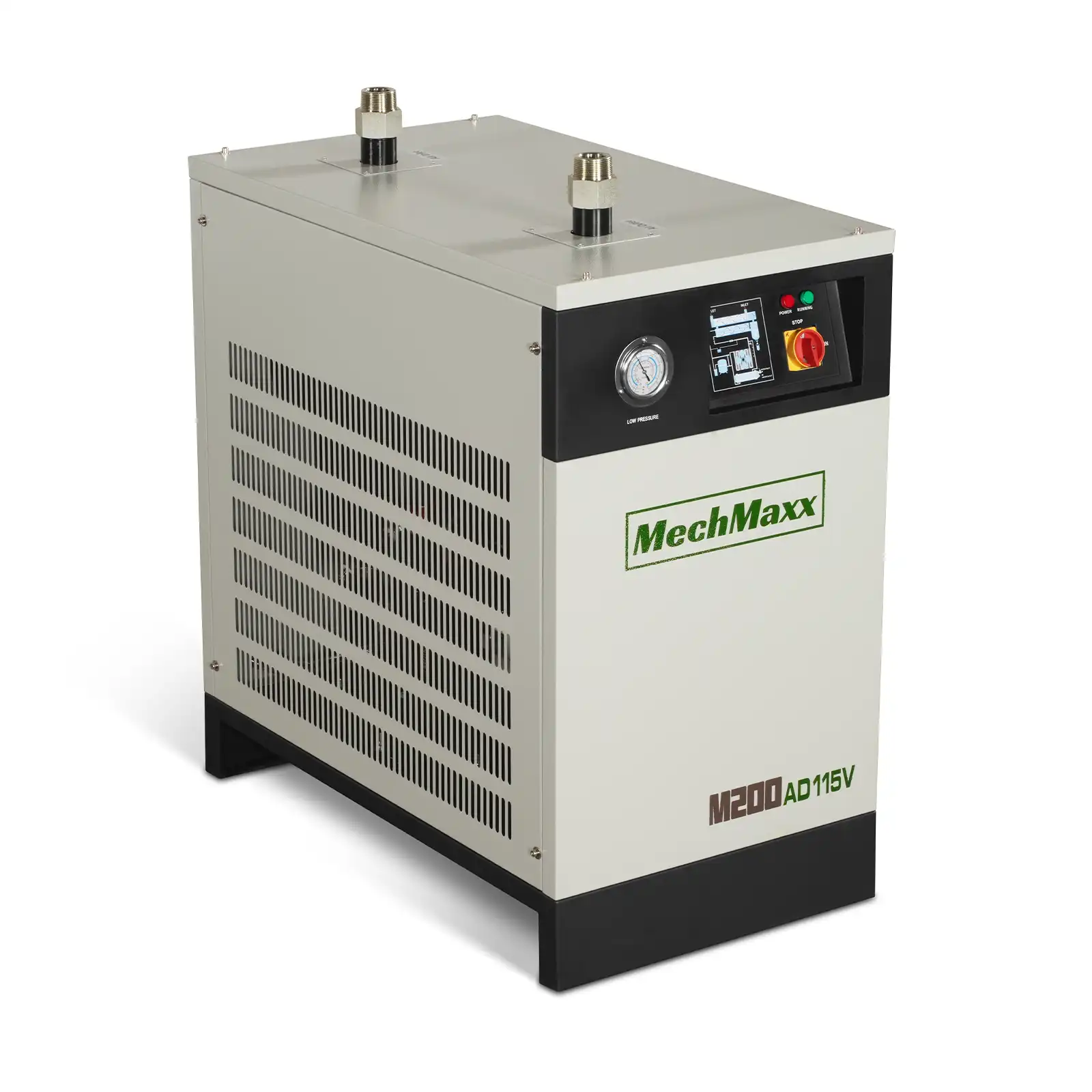

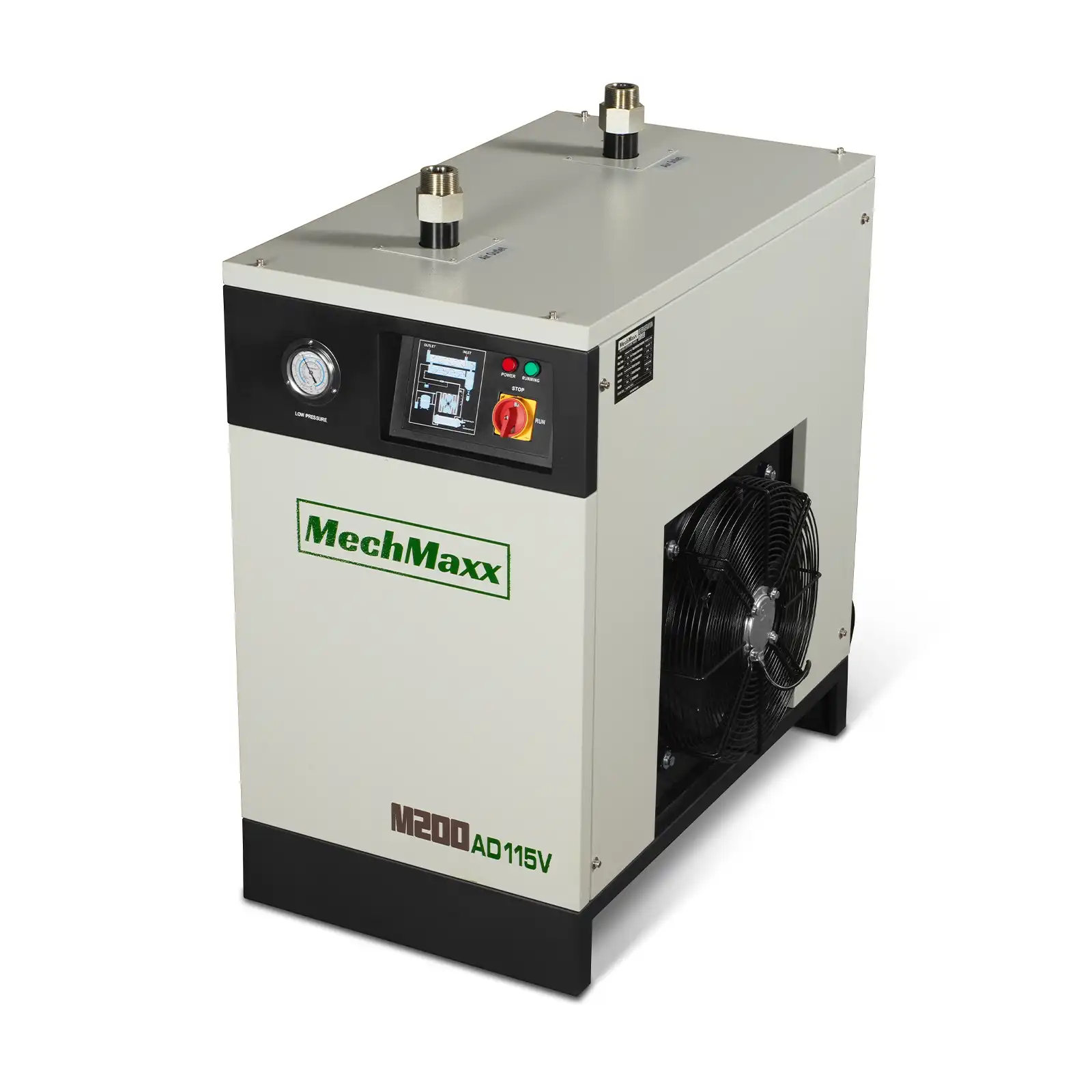

196CFM Refrigerated Air Dryer 1Phase 115V For Air Compressor
